Description

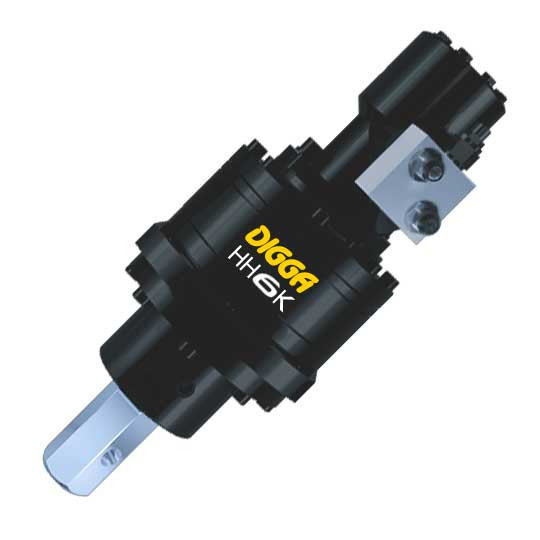

Digga’s HH6K lightweight screw pile torque head is designed for confined spaces and low headroom sites, making it ideal for applications such as crawl spaces, subfloor underpinning, and other restricted-access areas. The compact (yet powerful) drive can be powered by portable hydraulic power packs and ensures efficient and precise screw pile installation in challenging environments.
Engineered with an innovative low-maintenance gearbox, the HH6K screw pile torque head delivers exceptional reliability and performance. Featuring a Digga/Danfoss hydraulic motor with built-in pressure relief valve, it provides consistent power and durability. Manufactured in Europe, with factory-backed warranty, the HH6K is a versatile high performance solution for difficult-to-access jobs where traditional equipment is not suitable.
Features
- Compact high torque Digga manufactured gearbox
- Lightweight and compact for ease of movement
in confined spaces - High efficiency Danfoss/Digga geroler hydraulic motor
- Motor mounted pressure relief valve fitted standard (HH-6K)
- Available in single speed 6,525 ft-lbs
- No Handheld bar or mount included.
| Specs | HH6K | |
| Theoretical Torque |
6,528 ft-lbs @ 2,100 psi | |
| Expected Torque | 4,765 FT-LBs @ 2,100 PSI (73% efficiency) | |
| Max Pressure | 2100 psi @ 15 gpm | |
| Max flow | 15 gpm @ 2100 psi | |
| Max horse power | 18 | |
| Pressure Relief Valve |
Included | |
| Std Output Shaft | 2" Hex | |
| Weight | 90 lbs | |
| Overall length | 20" | |
| Diameter | 9.5" | |
| (*) HH-6K Lightweight unit is not suitable for machine mounting. Warranty void if used on machines. | ||
