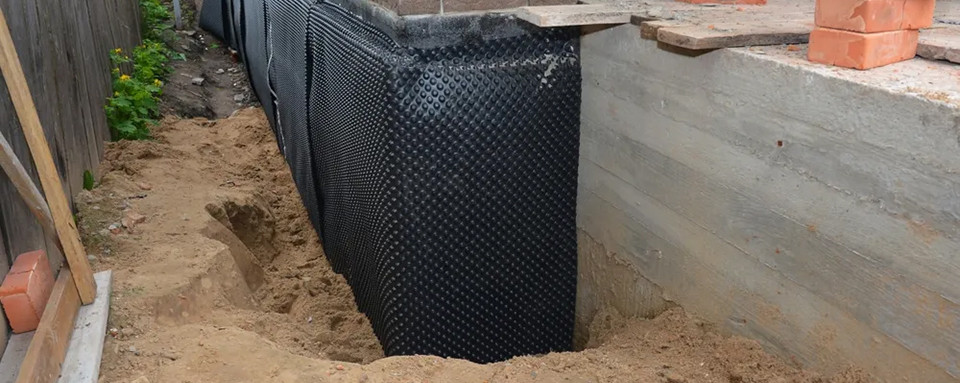

Dimple Board Installation Guide for Effective Waterproofing

This guide details the methods and benefits of using dimple boards for foundation and basement waterproofing. Dimple boards serve as a critical moisture barrier, shielding concrete slabs and retaining walls from water damage. The guide reviews materials, installation steps, troubleshooting, cost insights, and FAQs for long-term protection.

What Is a Dimple Board and How Does It Protect Foundations?

Dimple boards are extruded plastic panels with raised dimples on one side. When placed against foundation walls or slabs, they create a continuous drainage and air gap that eases water flow away from the structure and reduces hydrostatic pressure. This design interrupts direct moisture contact, allowing the foundation to "breathe" and lowering the risk of efflorescence, mold growth, and concrete deterioration.

What Materials Are Used in Dimple Boards?

Manufactured primarily from high-density polyethylene (HDPE) or polypropylene, dimple boards are durable, chemically resistant, and flexible. Some boards include additives for UV stabilization and improved bonding with concrete and mortar. They are available in varying thicknesses and dimple depths to meet the specific needs of individual projects.

How Does a Dimple Board Prevent Water Damage?

Dimple boards create a continuous air cavity between the foundation and the waterproof membrane, allowing for a more effective drainage system. This gap provides an alternative pathway for water by reducing hydrostatic pressure and promoting evaporation. The physical separation prevents moisture buildup, thereby reducing the risks associated with water damage and mold development.

What Are the Key Benefits of Using Dimple Boards?

Key benefits include enhanced drainage and improved vapor transmission. - Reduced water pressure against the foundation, increasing structure longevity. - Lightweight and cost-effective installation. - Environmental benefits and compatibility with various waterproofing membranes and drainage systems.

Which Tools and Materials Are Needed for Dimple Board Installation?

Successful installation requires the following tools and materials: - A utility knife or saw for precise cutting. - A nail gun or quality fasteners (nails, screws, or clips). - A measuring tape for accurate dimensions. - Construction-grade adhesive for areas where mechanical fastening is difficult. - Drainage gravel, waterproof membranes, and concrete backfill to support effective integration and drainage.

What Fasteners and Accessories Are Required?

Common fasteners include nails, screws, and specialized clips designed specifically for dimple boards. Accessories such as tensioning straps, sealing tapes, and construction caulk help secure the board and seal gaps, ensuring minimal movement and a continuous barrier against water pressure.

How to Choose the Right Dimple Board for Your Project?

Selection depends on project size, local moisture conditions, and specific structural needs. Evaluate the board's thickness, dimple pattern, and material quality. Check manufacturer specifications, load ratings, and compatibility with waterproofing membranes. Cost per square foot and environmental impact are also critical factors in choosing a sustainable solution.

How to Install Dimple Board Step by Step for Foundations and Basements?

Installation requires careful surface preparation, precise cutting, and secure affixing: - Prepare the surface by cleaning, leveling, and repairing any cracks. - Follow detailed planning to ensure proper overlapping and seamless integration with drainage systems. - A methodical installation prevents water penetration and subsequent structural damage.

How to Prepare the Surface Before Installation?

Clean and level the foundation surface by removing debris, old waterproofing materials, and any irregularities. Repair existing cracks with appropriate sealants or mortars. A priming layer can be applied to enhance adhesion, ensuring the board bonds securely to the substrate.

What Are the Best Techniques for Cutting and Fastening Dimple Boards?

Use a sharp utility knife or a fine-toothed saw to cut the boards accurately—pre—drill holes to prevent cracking during fastening. Secure the board with corrosion-resistant screws or nails, ensuring the fasteners are flush to avoid water accumulation and maintain the necessary continuous drainage gap.

How to Overlap and Secure Dimple Boards Properly?

Install boards with a minimum 2-inch overlap to prevent gaps. Apply waterproof sealant along overlapping areas and use additional fasteners to reinforce the connection. Proper overlapping guarantees that even if one board shifts, the continuity of the barrier and drainage remains intact.

How to Integrate Dimple Board With Drainage Systems?

Enhance water management by integrating drainage pipes or channels behind the board. The board directs water towards these outlets while drainage gravel fills the cavity, ensuring efficient water removal. Secure all connections to maintain a continuous and effective drainage system.

What Are the Steps for Backfilling and Finishing After Installation?

After securing the boards, backfill with a free-draining material such as gravel or coarse sand. Compact the backfill in layers to prevent settlement. Smooth the surface and seal any exposed edges. An additional waterproofing membrane may be applied over the board for extra protection.

How Does Dimple Board Installation Differ for Retaining Walls?

Retaining wall applications often require adjustments due to the presence of vertical surfaces, increased soil pressure, and water accumulation. Specialized attachment methods and careful overlapping are necessary to maintain effective drainage and support.

Why Is Drainage Critical for Retaining Walls?

Retaining walls hold substantial soil volumes and withstand significant hydrostatic pressure. Effective drainage prevents water accumulation, reducing the risks of wall bulging, cracking, or collapse. Dimple boards create a channel that diverts water from the wall, enhancing stability and durability.

What Are the Specific Installation Steps for Retaining Walls?

Steps include: - Clean and level the wall surface to remove contaminants. - Attach the board using heavy-duty fasteners or adhesives suitable for vertical applications. - Ensure proper overlapping and sealing of joints with a waterproof sealant. - Place drainage material, such as gravel, behind the board to improve water diversion and support the wall structure.

What Are Common Problems and How to Troubleshoot Dimple Board Installations?

Even with proper installation, issues such as water leakage, board shifting, or fastener corrosion can still occur. Regular inspections help identify gaps or material deficiencies before severe damage sets in. Prompt troubleshooting maintains waterproofing performance and extends system longevity.

How to Identify and Fix Water Leakage Issues?

Identify leaks by inspecting overlaps and fastener areas for signs of water accumulation or staining. Apply a high-quality waterproof sealant to minor gaps. For persistent issues, re-fasten or replace damaged sections. Regular maintenance is key to early detection and resolution.

What Are Typical Installation Mistakes to Avoid?

Avoid common pitfalls: - Inadequate cleaning and surface preparation. - Uneven overlaps and insufficient fastening. - Poor integration with drainage systems. Following manufacturer guidelines, thorough pre-installation checks, and ongoing quality inspections minimize these errors.

How Much Does Dimple Board Installation Cost and What Are the Pricing Factors?

Installation costs vary based on board type, project size, labor, and materials such as drainage gravel and waterproof membranes. Pricing is typically based on a per-square-foot basis, and higher-quality products command a premium. Understanding the factors helps in budgeting and comparing dimple boards with alternative waterproofing methods.

Final Thoughts

Dimple board installation offers a modern, sustainable solution for waterproofing foundations and retaining walls. By creating a drainage gap and directing water away from structural surfaces, these boards enhance the durability and longevity of the building. Proper preparation, precise installation, and routine maintenance ensure reliable protection against water damage. As construction standards evolve, cost-effective and eco-friendly solutions, such as dimple boards, are essential for resilient infrastructure development.
